Cart-Mount-12T-SLIMLINE-208-3-MACH_145

THERM-AIR FAMILY

Need help selecting the right Therm-Air Family cart mount unit? No worries – Spot Coolers can help. Our experts are ready to answer your questions at any time.

CONTACT US
wave-white-md

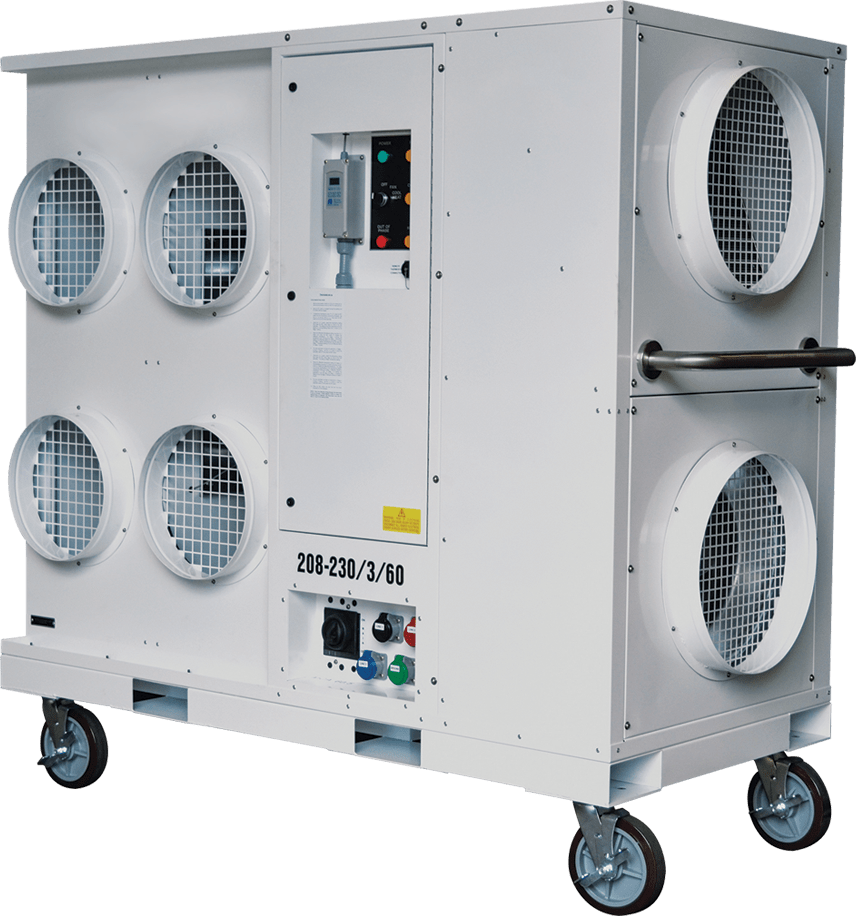

ThermAir MACH145G3AS
ThermAir-MACH145G3AS-12T

Cooling Capacity 135,000 Btu/h

Heating Capacity 30kw / 102,000 Btu/h

Air Flow Evaporator 4,000 cfm

Voltage/Amps (@60Hz) 208-230/60/3

Duct Connections 14"

Dimensions (W x H x D) 34.5 x 71 x 78

ThermAir MACH145G4AS
ThermAir-MACH145G4AS-12T

Cooling Capacity 135,000 Btu/h

Heating Capacity 30kw / 102,000 Btu/h

Air Flow Evaporator 4,000 cfm

Voltage/Amps (@60Hz) 460-480/60/3

Duct Connections 14”

Dimensions (W x H x D) 34.5 x 71 x 78

ThermAir PACH5N1AS
ThermAir-PACH5N1AS-5T

Cooling Capacity 57,100 Btu/h

Heating Capacity 10kw / 34,120 Btu/h

Air Flow Evaporator 2,000 cfm

Voltage/Amps (@60Hz) 208-230/60/1

Duct Connections 14"

Dimensions (W x H x D) 29.5 x 54.5 x 67

ThermAir PACH5N3AS
ThermAir-PACH5N3AS-5T

Cooling Capacity 57,100 Btu/h

Heating Capacity 15kw / 51,180 Btu/h

Air Flow Evaporator 2,000 cfm

Voltage/Amps (@60Hz) 208-230/60/3

Duct Connections 14"

Dimensions (W x H x D) 29.5 x 54.5 x 67

ThermAir PACH5N4AS
ThermAir-PACH5N4AS-5T

Cooling Capacity 57,100 Btu/h

Heating Capacity 15kw / 51,180 Btu/h

Air Flow Evaporator 2,000 cfm

Voltage/Amps (@60Hz) 460-480/60/3

Duct Connections 14"

Dimensions (W x H x D) 29.5 x 54.5 x 67

ThermAir PACH25G3ATA
ThermAir-PACH25G3ATA-25T

Cooling Capacity 288,250 Btu/h

Heating Capacity 60kw / 204,700 Btu/h

Air Flow Evaporator 14,000 cfm

Voltage/Amps (@60Hz) 208-230/60/3

Duct Connections 14"

Dimensions (W x H x D) 94 x 75 x160

ThermAir PACH25G4ATA
ThermAir-PACH25G4ATA-25T

Cooling Capacity 288,250 Btu/h

Heating Capacity 60kw / 204,700 Btu/h

Air Flow Evaporator 14,000 cfm

Voltage/Amps (@60Hz) 460-480/60/3

Duct Connections 14"

Dimensions (W x H x D) 94 x 75 x160

ThermAir PACH30G3ATA
ThermAir-PACH30G3ATA-30T

Cooling Capacity 362,000 Btu/h

Heating Capacity 60kw / 204,700 Btu/h

Air Flow Evaporator 14,000 cfm

Voltage/Amps (@60Hz) 208-230/60/3

Duct Connections 14"

Dimensions (W x H x D) 94 x 75 x 160

ThermAir PACH30G4ATA
ThermAir-PACH30G4ATA-30T

Cooling Capacity 362,000 Btu/h

Heating Capacity 60kw / 204,700 Btu/h

Air Flow Evaporator 14,000 cfm

Voltage/Amps (@60Hz) 460-480/60/3

Duct Connections 14"

Dimensions (W x H x D) 94 x 75 x 160
