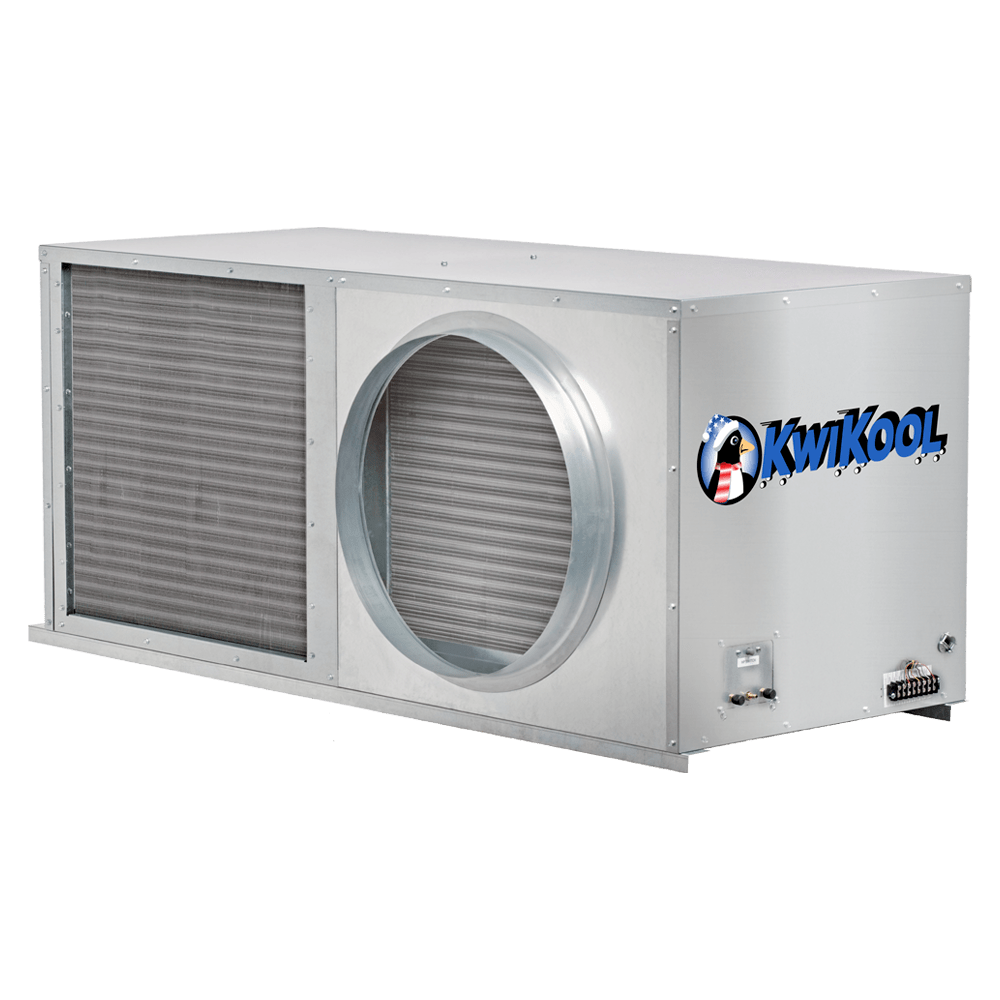

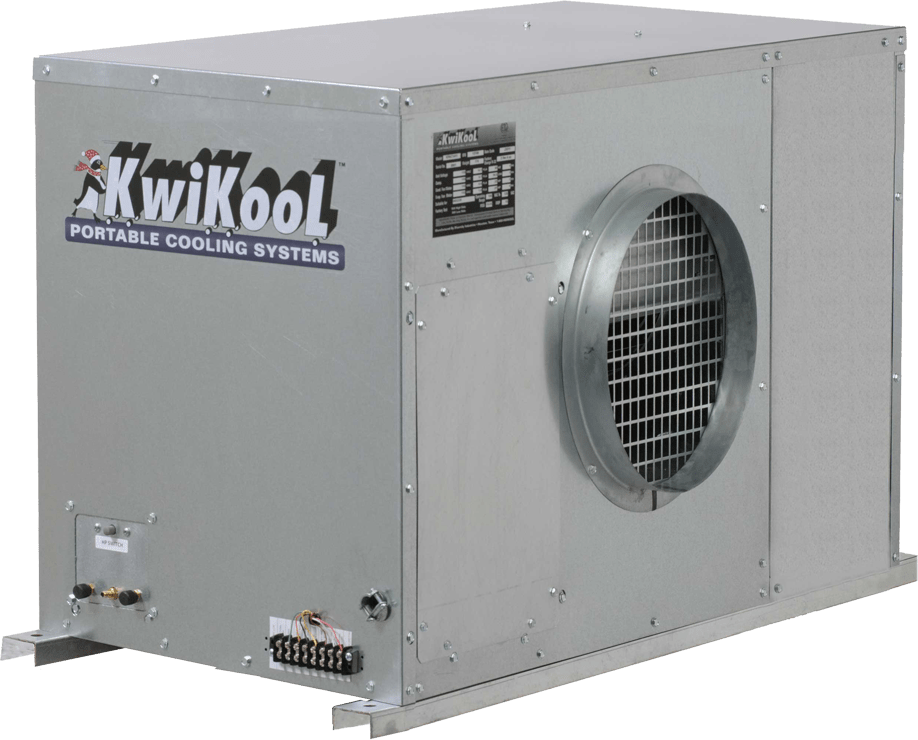

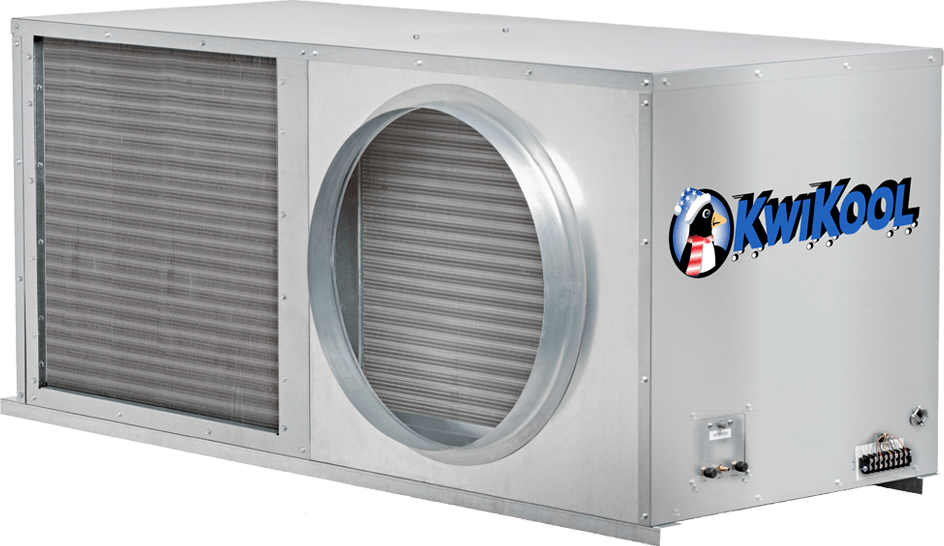

KWIKOOL CEILING MOUNT
Need help selecting the right KwiKool ceiling mount unit? No worries – Spot Coolers can help. Our experts are ready to answer your questions at any time.
Ambient Operating Range 60°-95°F
Cooling Capacity 2 ton 23,500 Btu/h
Supply Airflow h/m/l 850
Voltage/Amps (@60Hz) 208/230 1-Phase
Recommended Breaker Size (A) 20
Ambient Operating Range 60°-95°F
Cooling Capacity 2.5 ton 29,500 Btu/h
Supply Airflow h/m/l 950
Voltage/Amps (@60Hz) 208/230 1-Phase
Recommended Breaker Size (A) 20
Ambient Operating Range 60°-95°F
Cooling Capacity 3.5 ton 42,000 Btu/h
Supply Airflow h/m/l 1,400
Voltage/Amps (@60Hz) 208/230 1-Phase
Recommended Breaker Size (A) 40
Ambient Operating Range 60°-95°F
Cooling Capacity 5 ton 60,000 Btu/h
Supply Airflow h/m/l 2,000
Voltage/Amps (@60Hz) 208/230 1-Phase
Recommended Breaker Size (A) 50
Ambient Operating Range 60°-95°F
Cooling Capacity 5 ton 60,000 Btu/h
Supply Airflow h/m/l 2,000
Voltage/Amps (@60Hz) 208/230 3-Phase
Recommended Breaker Size (A) 40
Ambient Operating Range 60°-95°F
Cooling Capacity 5 ton 60,000 Btu/h
Supply Airflow h/m/l 2,000
Voltage/Amps (@60Hz) 460 3-Phase
Recommended Breaker Size (A) 20
Ambient Operating Range 60°-95°F
Cooling Capacity 2 ton 23,500 Btu/h
Supply Airflow h/m/l 850
Voltage/Amps (@60Hz) 208/230 1-Phase
Recommended Breaker Size (A) 20
Ambient Operating Range 60°-95°F
Cooling Capacity 2.5 ton 29,500 Btu/h
Supply Airflow h/m/l 950
Voltage/Amps (@60Hz) 208/230 1-Phase
Recommended Breaker Size (A) 20
Ambient Operating Range 60°-95°F
Cooling Capacity 3.5 ton 42,000 Btu/h
Supply Airflow h/m/l 1,400
Voltage/Amps (@60Hz) 208/230 1-Phase
Recommended Breaker Size (A) 30
Ambient Operating Range 60°-95°F
Cooling Capacity 5 ton 60,000 Btu/h
Supply Airflow h/m/l 2,000
Voltage/Amps (@60Hz) 208/230 1-Phase
Recommended Breaker Size (A) 40
Ambient Operating Range 60°-95°F
Cooling Capacity 5 ton 60,000 Btu/h
Supply Airflow h/m/l 2,000
Voltage/Amps (@60Hz) 208/230 3-Phase
Recommended Breaker Size (A) 30
Ambient Operating Range 60°-95°F
Cooling Capacity 5 ton 60,000 Btu/h
Supply Airflow h/m/l 2,000
Voltage/Amps (@60Hz) 460 3-Phase
Recommended Breaker Size (A) 20
